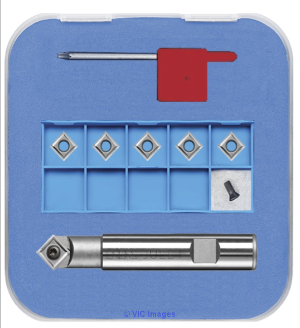

Balanced tool kit JOLLY B MINI-TOOL Ø 16 mm. - ZRN
Balanced tool kit JOLLY B MINI-TOOL Ø 16 mm., multifunction, for stainless steel, aluminium and non-ferrous alloys code KS02 S CT ZRN04
The Kit is composed of:
Nr.1 Stem
Nr.6 Inserts
Nr.2 Insert locking screws
Nr.1 Key
Suitable for machining of materials of stainless steel, aluminium and non-ferrous alloys.
It can be used to center, countersink, turning, facing heads, and blunt impact.
INSERTS:
Model SD11T3CT-ZRN
Coating: ZIRCONIUM (HV 2500 ± 300)
Side: 11 x 11 mm.
Geometry: 90°
Vertex radius: 0,8 mm.
SCREWS:
Model SC35087
Type: Torx M 3,5-H4 x 8,7 mm. - 2,5Nm
KEY:
model TORX-T15
Type: flag Torx T15
It can be used on machining centers, lathes, CNC milling machines and perform endless operations combined with one setup, on both spindles in rotation on both stations static on lathes. The tool balance allows to obtain a rotation speed of up to 16.000 turns / min., thereby increasing also the cutting speed. The stem is made of special steel with chrome, molybdenum and vanadium (THG 2000), with high mechanical strength, performed on h6 tolerance and suitable for the shrink fitting. Inserts supplied allow processes to center, countersink, turning, facing heads, and blunt impact.
133,50
